QB Gear Drives

Constructive form

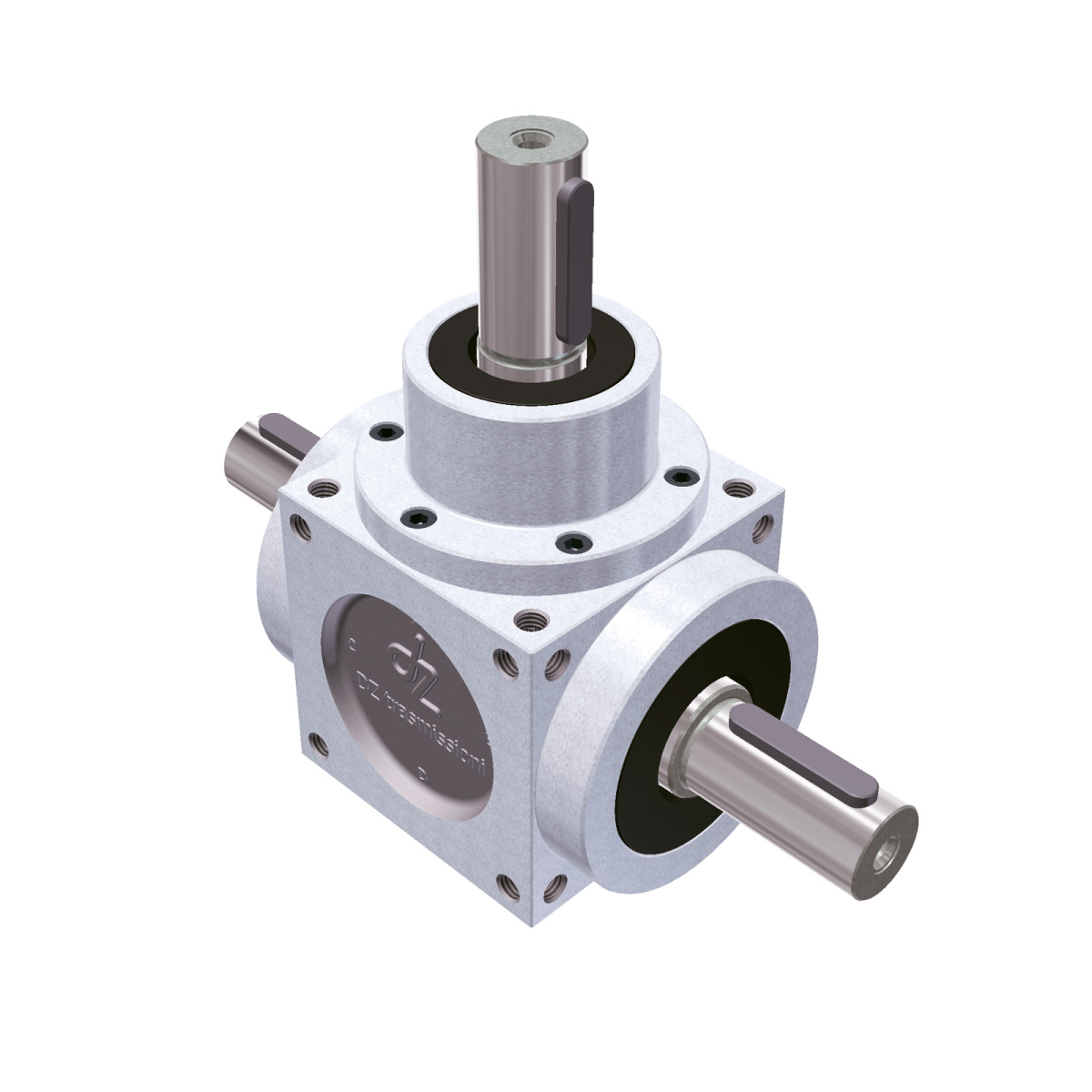

TYPE 1 - Constructive form

TYPE 1

TYPE 1

TYPE 1

trace parts 3D

Configure the model and download the file in the most common CAD formats

Available ratios

R 1:1
R 1:1.5
R 1:2
R 1:3
R 1:4

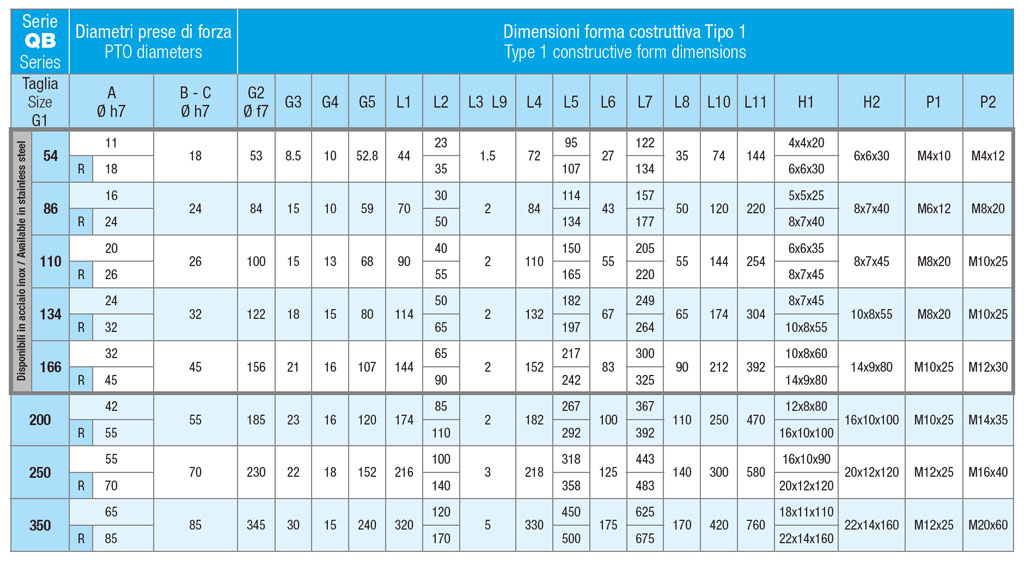

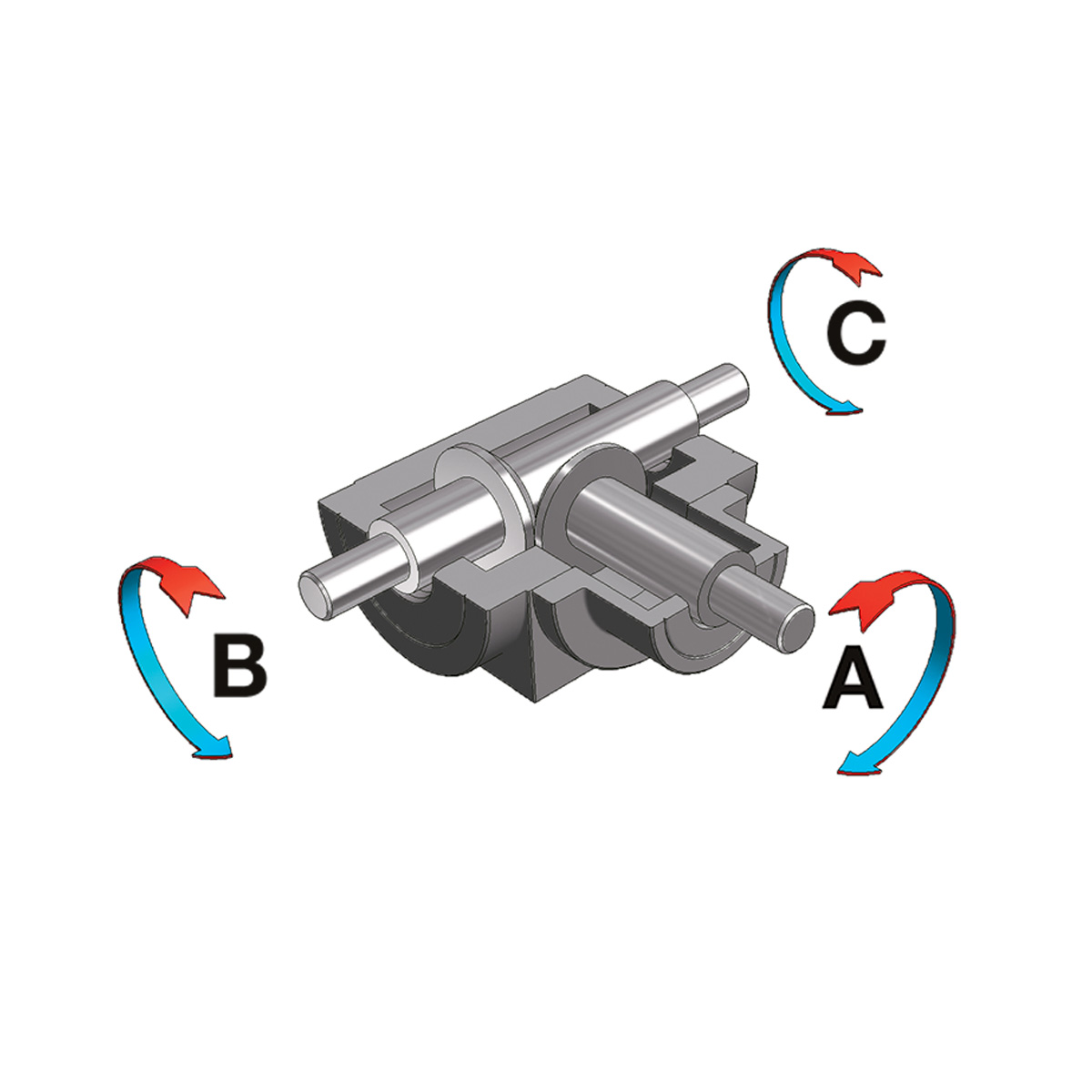

NOTE: The diameter of PTO “B” and “C” is the same for size.

For any further information please contact our Technical Dept.

Thanks to its 30 year experience in the manufacture of standard and special bevel gears, DZ TRASMISSIONI is able to solve any problem connected with the power transmission of a rotary motion between two axes arranged at 90°. Since 2021 DZ has become a division of Transtecno Group, gearmotors manufacturer based in Anzola Emilia.
