TYPE 31

QB Gear Drives

Constructive form

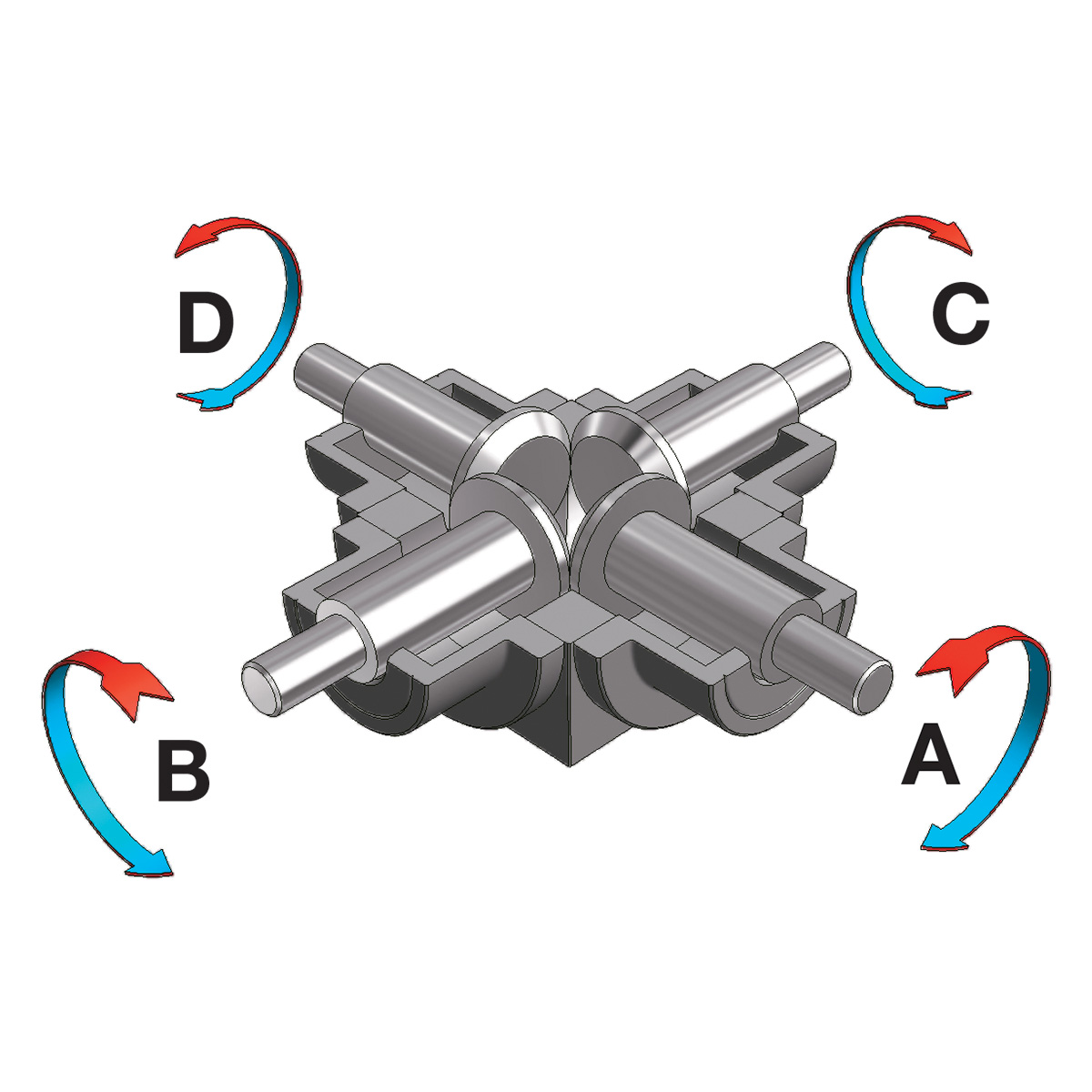

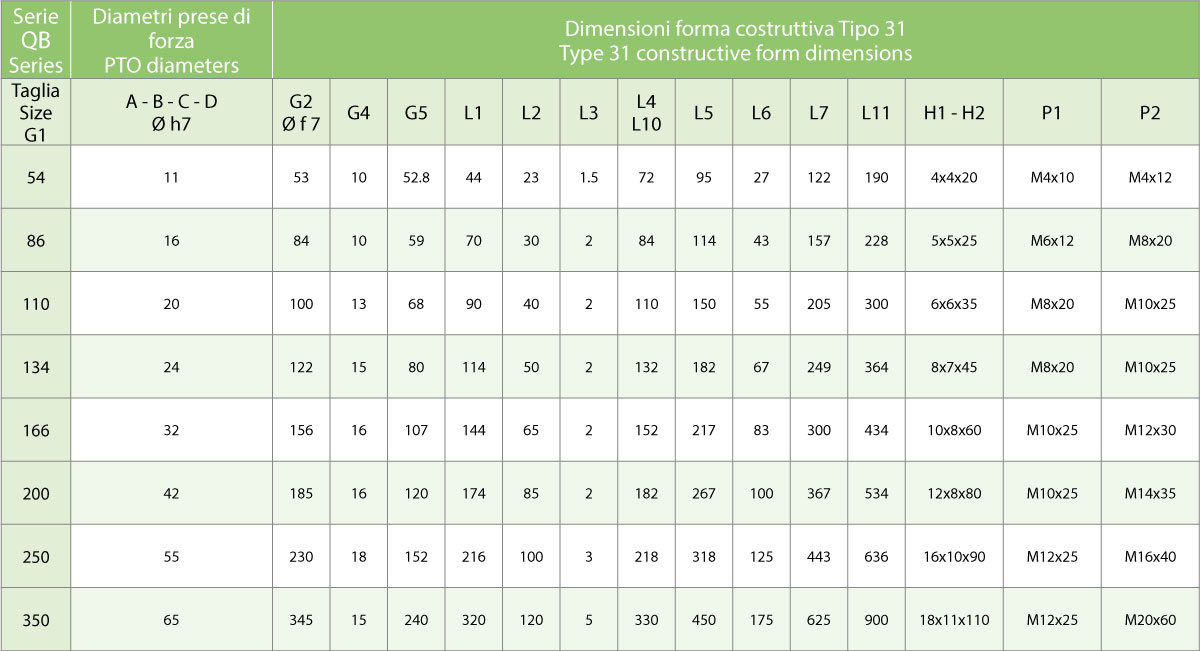

TYPE 31 - Constructive form

TYPE 31

TYPE 31

trace parts 3D

Configure the model and download the file in the most common CAD formats

Available ratios

R 1:1
R 1:1.5
R 1:2
R 1:3
R 1:4

Thanks to its 30 year experience in the manufacture of standard and special bevel gears, DZ TRASMISSIONI is able to solve any problem connected with the power transmission of a rotary motion between two axes arranged at 90°. Since 2021 DZ has become a division of Transtecno Group, gearmotors manufacturer based in Anzola Emilia.
