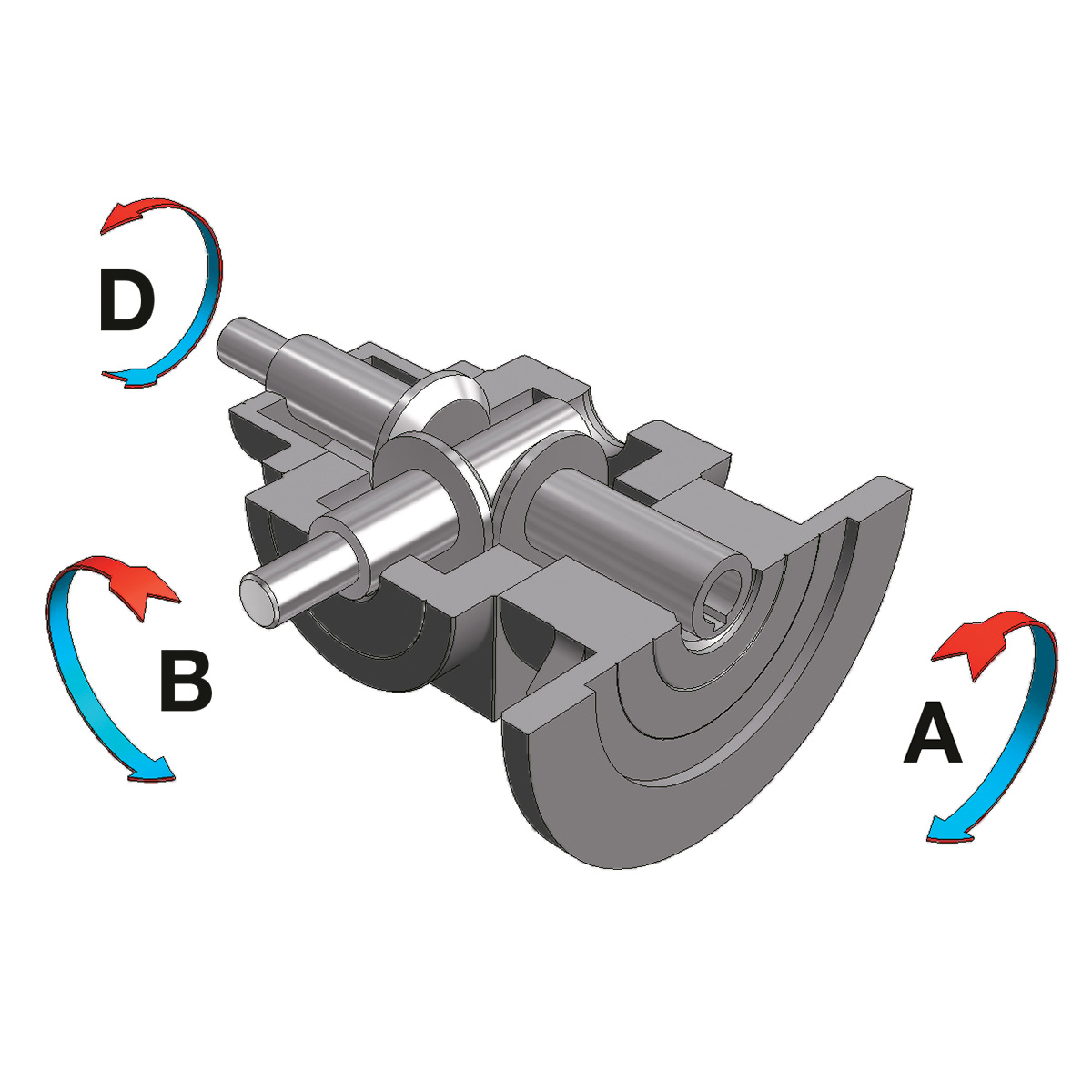

TYPE 17

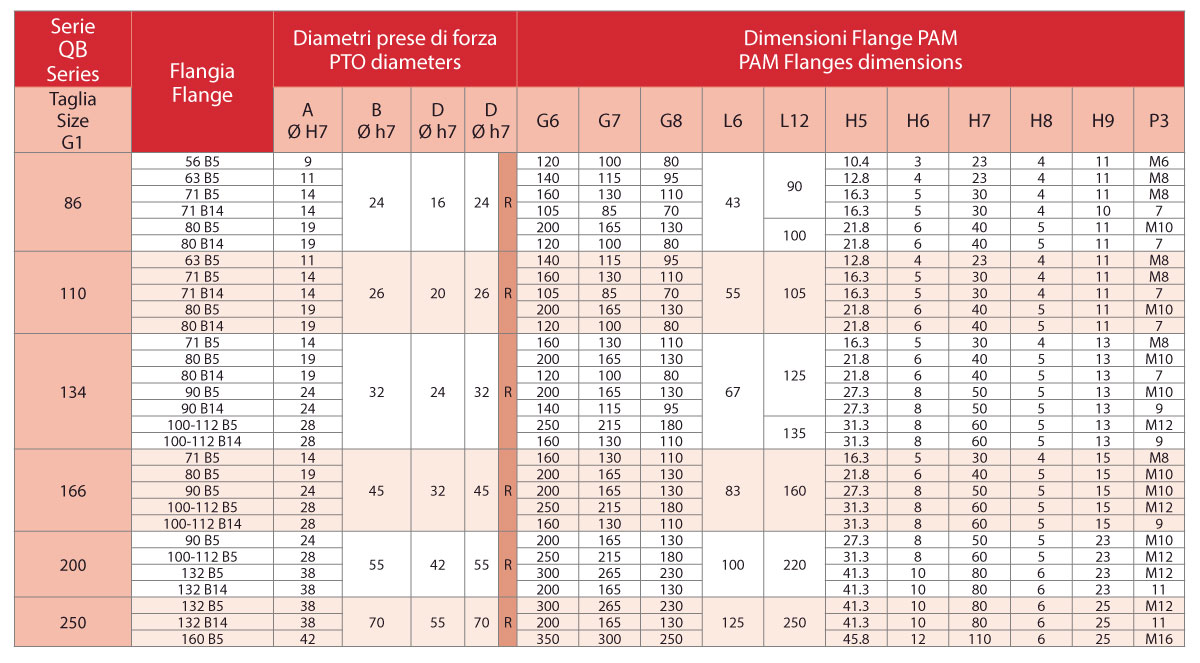

For all non-quoted dimensions, please refer to those of the Type 7 table.
Available ratios
- R 1:1
- R 1:1.5
- R 1:2
- R 1:3
- R 1:4
In all versions of all sizes, the holes for mounting the motors can be oriented at 0° or 45°
NOTE: The diameter of PTO “B” and “D” is the same for size.
For any further information please contact our Technical Dept.
