TYPE 19

QB Gear Drives

Constructive form

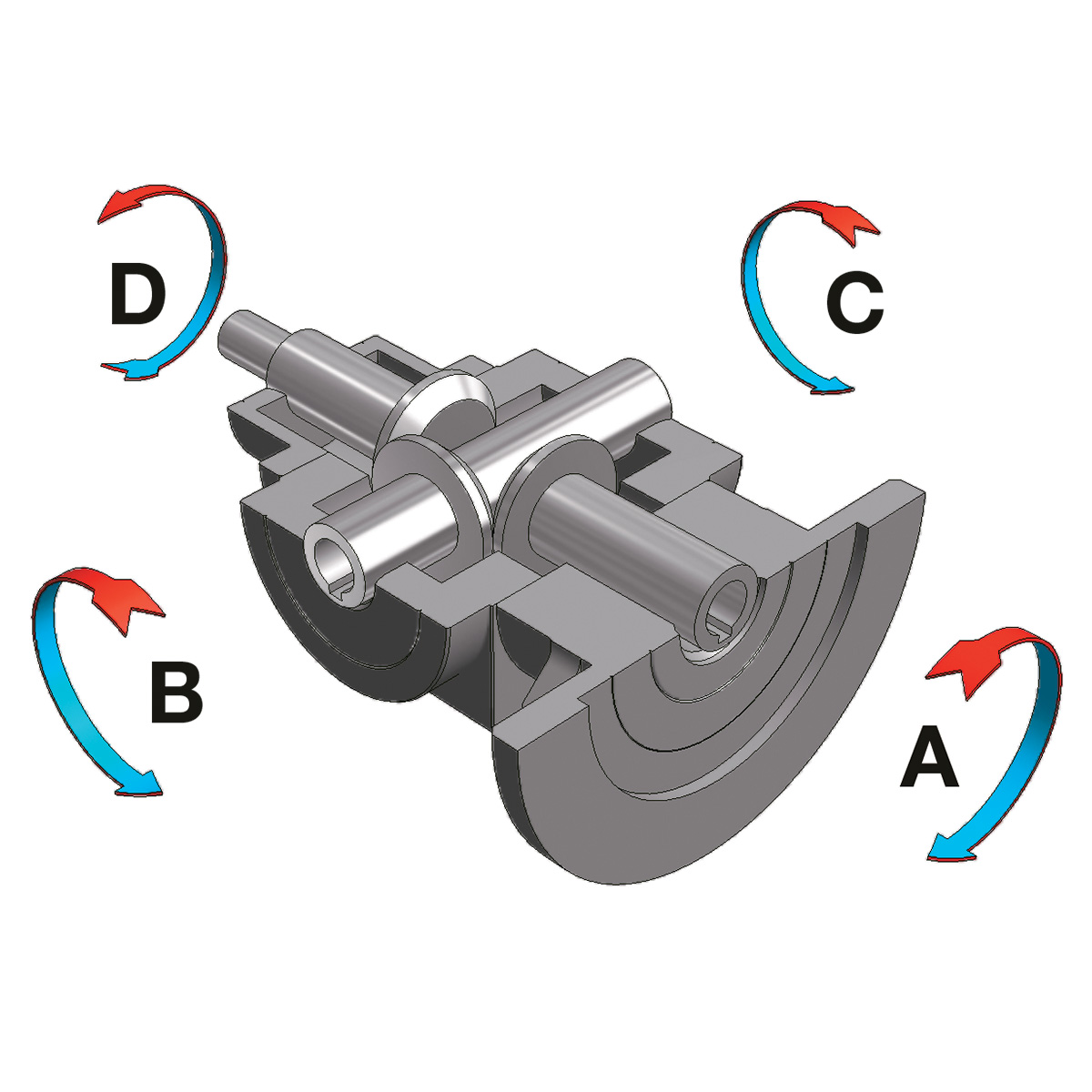

TYPE 19 - Constructive form

TYPE 19

TYPE 19

trace parts 3D

Configure the model and download the file in the most common CAD formats

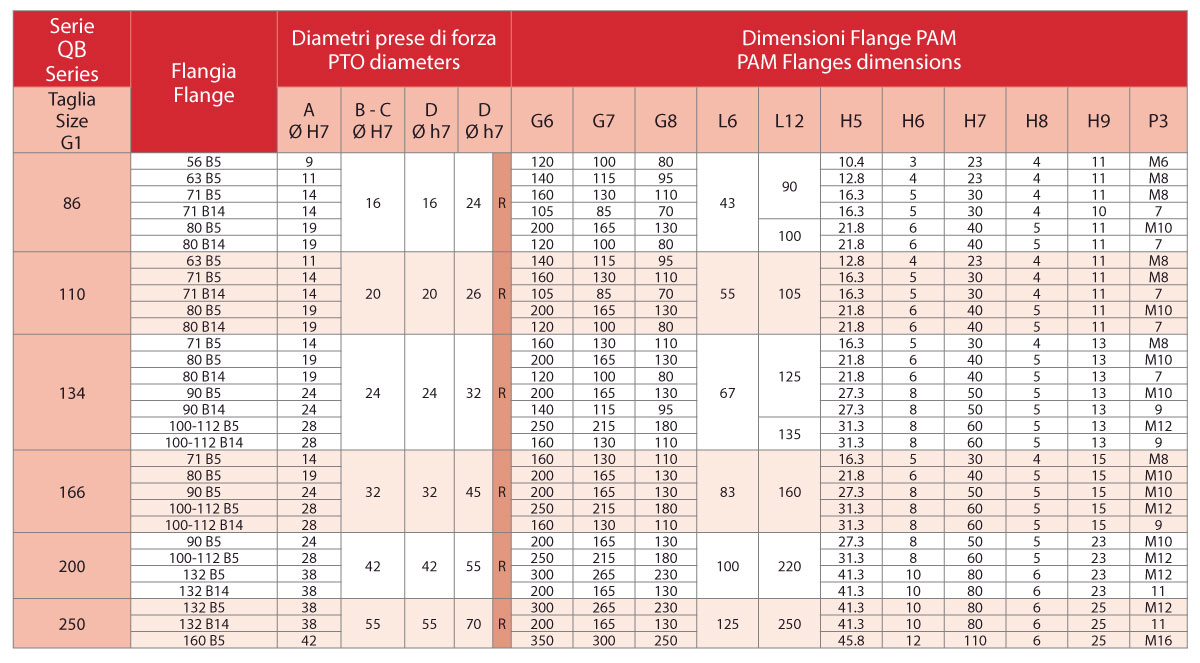

For all non-quoted dimensions, please refer to those of the Type 9 table.

Available ratios

R 1:1
R 1:1.5
R 1:2
R 1:3
R 1:4

In all versions of all sizes, the holes for mounting the motors can be oriented at 0° or 45°

Thanks to its 30 year experience in the manufacture of standard and special bevel gears, DZ TRASMISSIONI is able to solve any problem connected with the power transmission of a rotary motion between two axes arranged at 90°. Since 2021 DZ has become a division of Transtecno Group, gearmotors manufacturer based in Anzola Emilia.
